Hybrid with Robot

Hybrid with Robot

Robot on a TE Series

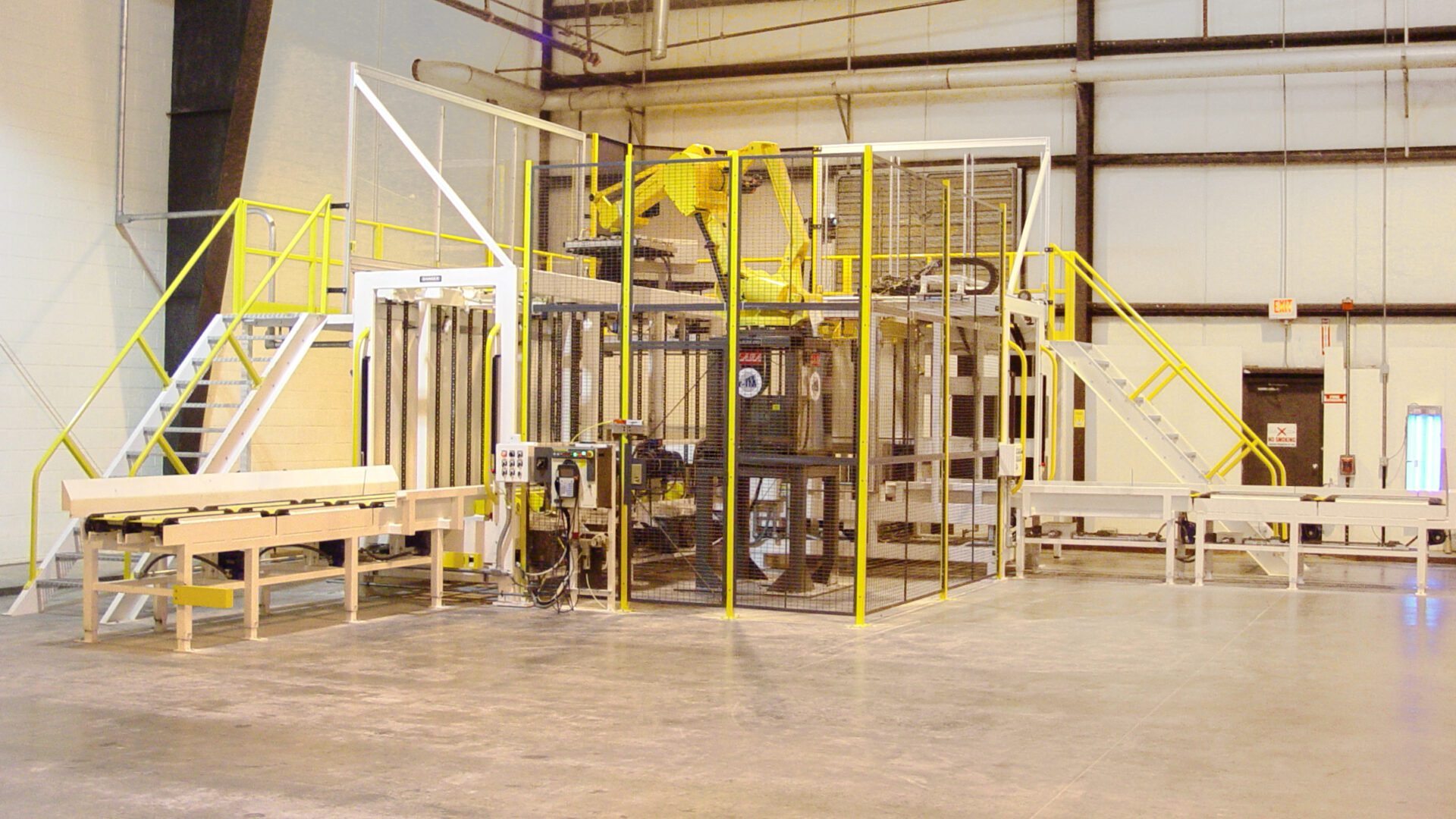

Customers that demand the ultimate in package flexibility are rewarded by the T-TEK Hybrid Palletizer line. Our original offering is a Kuka robot mounted on our TE Series uni-frame for stability. T-TEK can also mount the robot on an used palletizer or retrofit your existing palletizer in the field.

Category:

T-TEK PACKAGE

Product Features

  • Standardly handles cases up to 45 lbs, 16 inches wide, and 15 inches high with NO change parts required. Larger packages available as an option.
  • Handles all types of packaging, stretch wrap, plastic shells, paperboard, or corrugated boxes.

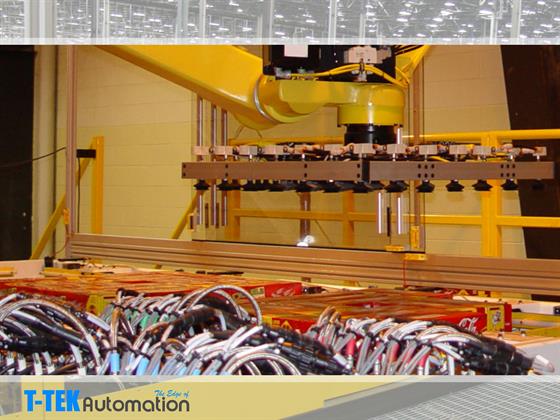

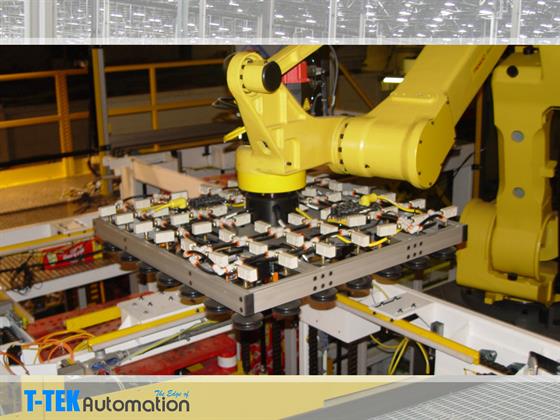

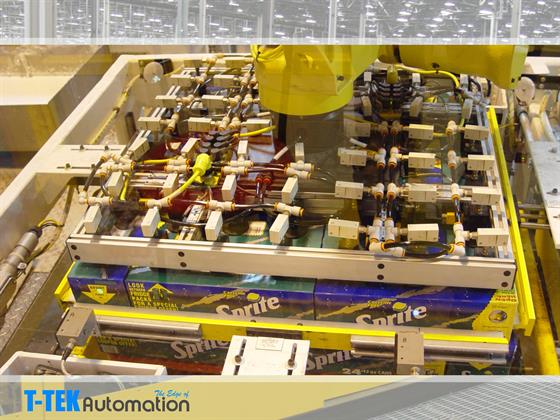

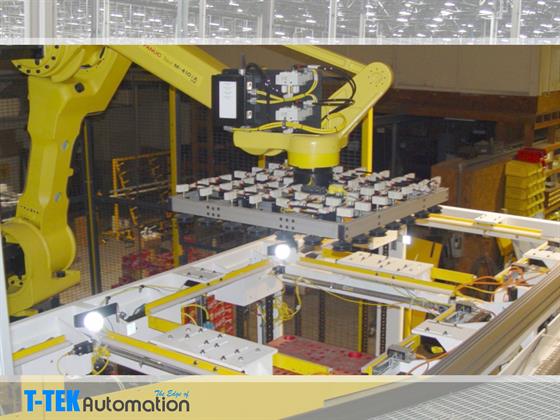

  • The gripper uses a combination of position and torque limiting to manage your case gently but accurately.
  • Windows with safety interlocks leave product visible and easy to access once the machine is stopped.
  • Multiple robotic arms can be used in series to improve package throughput.
  • Once cases are released, the case pattern is formed and moved to our standard TS Series servo Hoist, Apron, and End Compression for complete servo handling of your problem cases.

ADD-ON ACCESSORIES

Optional Features

  • Auto-adjusting infeed guides
  • Auto pallet centering on Pallet Hoist
  • Additional Operator Touchscreen (HMI) on Main Control Panel
  • Hoist access window on non-operator side
  • Additional Platform with Hand Bar Grating
  • Additional Stairways
  • Safety Addition
    • Additional Trap Key for Lockout-Tagout
    • Hoist safety lockout pins
    • Electrically interlocked Hoist/Apron cover
    • Light curtain on Non – operator side
    • Taller handrail (42″) opposite the operator touchscreen
    • Light curtain in Dispenser Infeed area
    • Electrically interlocked gate with fencing
    • Empty Pallet Infeed area fencing with Steel mesh access gates
    • Case Infeed Tunnel with safely access Gate
    • Full Load Outfeed Area Fencing with Steel mesh access gates

CUSTOM FIT

Equipment Options

  • CDLR Load station with Back wall
  • 90 Degree Transfer-table on Empty pallet loading area
  • 90 Degree Transfer-table on Full Load Pallet Discharge area
  • 90 Degree Turn-table on Empty pallet loading area
  • 90 Degree Turn-table on Full Load Pallet Discharge area
  • Curved Conveyors
  • Table-top accumulation conveyor with Three Strand Double Capacity 60 Chains
  • Tier-sheet Dispenser System
  • Scissor Lift
  • T-Car (Transfer Car) System
  • Pallet Lifting/Lift Conveyors
  • Pallet tipping and flipping equipment
  • Test Bench equipment

We test-run our customer products by executing the Factory Acceptance Test on the assembled machine to verify it is built and operating in accordance with design specifications. Here are a few videos of testing products on our TE Series palletizers.
